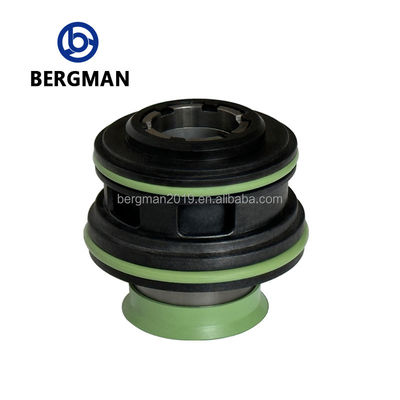

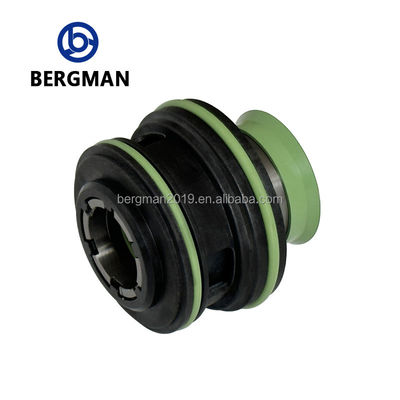

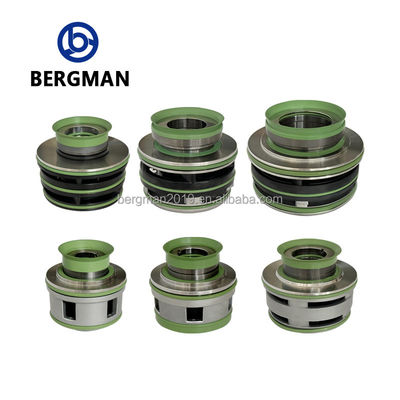

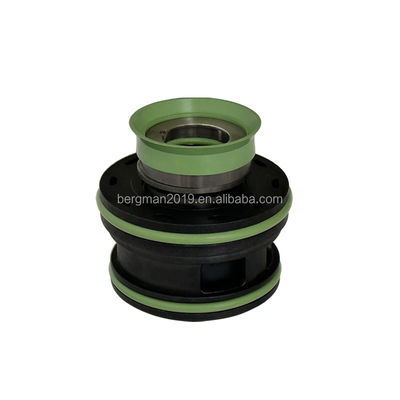

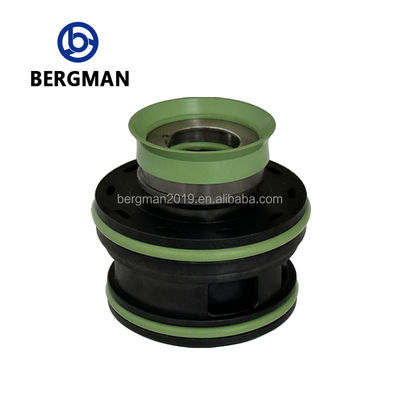

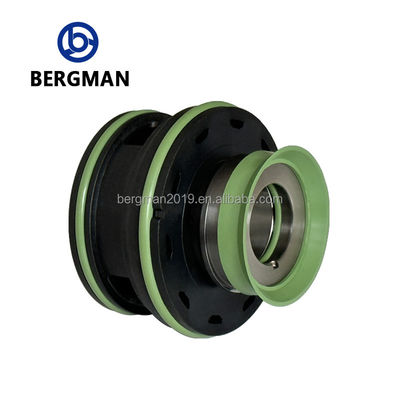

20mm Flygt Pump Cartridge Seal with Tungsten Carbide TC Faces and VITON FPM Elastomer for SS316 Hastelloy C AM350
Свяжитесь я бесплатно образцы и талоны.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Скайп: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Размер | 20 мм | Материал лица | Вольфрамовый карбид TC |
|---|---|---|---|
| Материал места | Вольфрамовый карбид TC | Эластомерный материал | VITON FPM |
| Металлические детали | SS316 Гастеллой C AM350 | Максимальное давление | ≤ 1,5 МПа |
| Максимальная скорость линии | ≤ 15 м/с | Температурная диапазон | -20 ° C-180 ° C. |
| Модель | FGL-FS | Код HTS | 8484.20.00 |
| Совместимые модели | 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100,211, 5100,220, 2100,211, 3171 | Стандарты Соответствие | DIN24960, ISO3069, EN12576, API682 |
| Вторичная печать | VITON FPM | Уплотнительный кольцо материал | Зависит от приложения |
| Совместимость замены | Flygt Original Seals | ||
| Выделить | Tungsten Carbide TC Cartridge Seal,VITON FPM Cartridge Seal,SS316 Hastelloy C AM350 Flygt Seal |
||
Характер продукции
Replace Flygt Cartridge Seal FS-20mm 2610 2620 2630 2640 4610 4620 3085 Mixer Pump Mechanical Seal
Product Specifications
| Name | Mechanical Seal |
|---|---|
| Size | Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm) |
| Brand | BERGMAN |
| Model | FGL-FS |
| Pressure | ≤ 1.5mpa |
| Temperature | -20°C-180°C (Depends on O-ring material) |
| Face Material | Tungsten carbide TC |
| Seat Material | Tungsten carbide TC |
| Secondary Seal | VITON FPM |
| Metal Parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 |
| Service | OEM customization service |
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original Flygt seals
- Available in different price points based on customer requirements
- 2,000+ square meter warehouse with large inventory
- Factory-direct pricing with excellent quality
- Fast delivery times
- OEM and customization services available
- Can replace Burgman, John Crane, AES and other major brand seals
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, we have grown into a leading manufacturer of mechanical seals with ISO9001:2015 certification.
Our product range includes pump mechanical seals, axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, and various sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery. Our company philosophy is: innovation, professionalism, and quality-oriented service.
Facilities
- Product exhibition hall with over 1,000 varieties
- 2,000+ square meter warehouse with video viewing available
- Modern machine tools and dust-free workshop
- Advanced inspection equipment and assembly line operation
- Regular participation in Guangzhou Spring Import and Export Fair
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, and chemical pumps. Serving industries including petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation.
Packaging & Shipping
Multiple packaging options available with custom packaging for large orders. Small size and weight make air, sea, and express shipping ideal.
