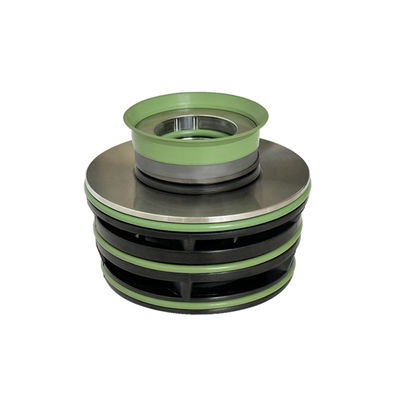

35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
Свяжитесь я бесплатно образцы и талоны.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Скайп: sales10@aixton.com
Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.
xПодробная информация о продукте
| Размер | 35 мм | Материал лица | Вольфрамовый карбид TC |
|---|---|---|---|
| Материал места | Вольфрамовый карбид TC | Эластомерный материал | VITON FPM |
| Металлические детали | SS316 Гастеллой C AM350 | Максимальное давление | ≤ 1,5 МПа |
| Максимальная температура | -20 ° C-180 ° C. | Максимальная скорость линии | ≤ 15 м/с |
| Модель | FGL-FS | Код HTS | 8484.20.00 |
| Совместимые модели | 2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100,211, 5100,220, 2100,211, 3171 | Стандарты Соответствие | DIN24960, ISO3069, EN12576, API682 |
| Вторичная печать | VITON FPM | Уплотнительный кольцо материал | Зависит от температурного диапазона |
| Совместимость замены | Flygt Original Seals | ||
| Выделить | ISO9001-2015 Mechanical Seal,Tungsten Carbide TC Pump Seal,VITON FPM Flygt Seal |
||
Характер продукции

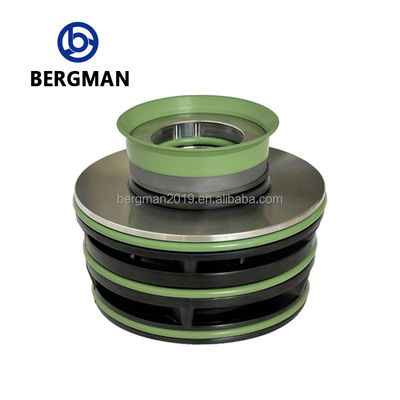

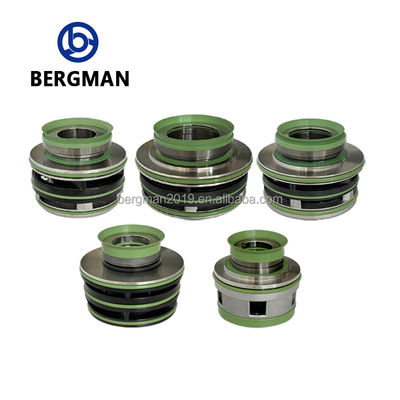

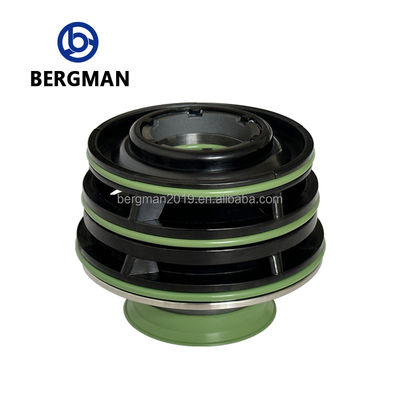

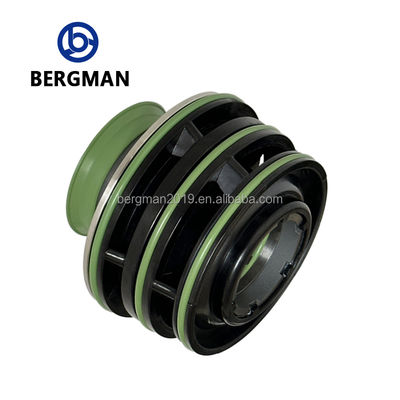

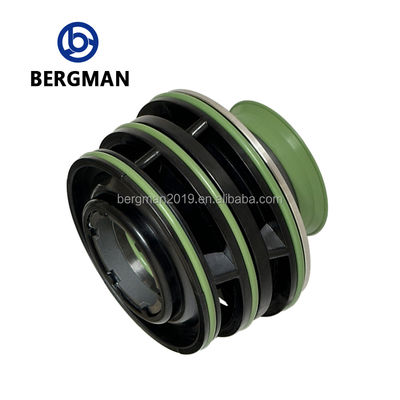

Flygt FS-35mm 3153 8204 2660 2670 Pump Barrel Mechanical Seal
Product Overview
High-quality mechanical seal replacement for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Country of Origin | Guangzhou, China |
| Size | Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm) | Brand | BERGMAN |
| Model | FGL-FS | MOQ | 1 set |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten Carbide (TC) | Seat Material | Tungsten Carbide (TC) |
| Secondary Seal | VITON FPM | Metal Parts | SS316, Hastelloy C, AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original Flygt seals
- Available in different price points based on customer requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customization services available
- Factory-direct pricing with excellent quality and fast delivery
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in various mechanical seals including pump seals, fluid seals, metal bellows seals, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Facilities
- Over 2,000 square meters of warehouse space
- Modern machine tools and dust-free workshop
- Advanced inspection equipment
- Assembly line production
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
Packaging & Shipping
Various packaging options available with customized packaging for large orders.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: Do you provide free samples?
A: Samples are not free, but sample costs can be refunded with order.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom orders.
Contact Information
International Trade:
Li Wei: +86-15622176299
Yang Yingjie (WeChat/WhatsApp): +86-15627223988
Yang Aijun (WeChat/WhatsApp): +86-13602719849
Email: bergman168@outlook.com
